商品の詳細:
|
| ドロー比率: | 1.5-12調整可能 | 延長ボックスの長さ: | 6.5m |
|---|---|---|---|
| ローラーの硬度: | HRC60 | 火力: | 41.6KW |
| 金型温度コントローラ: | 6kW | 絶縁: | 100mm |
| 製品の特徴: | 高強度のカスタマイズ可能 |

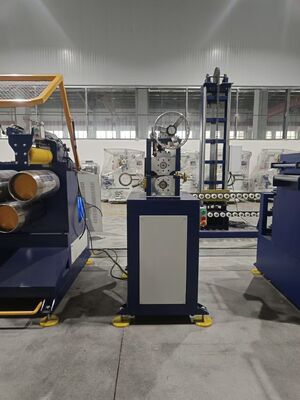

Stretching orientation is the core process for imparting high strength to PP strapping. The pressure extension unit and extension box of this production line provide a wide draw ratio adjustment range from 1.5 to 12 times.
By precisely controlling the speed ratio between the extension rollers and haul-off rollers, PP molecular chains are highly oriented along the stretching direction, increasing the longitudinal tensile strength of the product several times over its unoriented state.
Users can flexibly select the optimal draw ratio according to the final application (light bundling, heavy-duty packaging), achieving flexible production from standard to ultra-high strength strapping to meet diverse customer requirements.
| Item | Parameter |
|---|---|
| Draw Ratio Range | 1.5 - 12 times |
| Total Extension Box Length | 6.5 m (4m+2.5m) |
| Extension Roller Diameter | φ200mm |
| Extension Roller Hardness | HRC60 |
| Pressure Extension Roller Dia. | φ156mm |
| Pressure Extension Motor | 7.5KW |
| Extension Box Heating Power | 41.6KW |
| Mold Temp. Controller Power | 6KW |
| Working Temperature | 50-250℃ |
| Insulation Thickness | 100mm |
