商品の詳細:
|
| 冷却ステージ: | デュアル | 最初のタンクの長さ: | 3.5m |
|---|---|---|---|
| 第二タンクの長さ: | 5.5m | 材料: | 304 ステンレス鋼 |
| 水温調整: | 10～25℃ | モビリティ: | 完全に調整可能な最初のタンク |
| プロセス値: | 段階的な精密冷却 | ||
| ハイライト: | dual cooling water tanks for PP strapping,adjustable temperature water tanks,movable cooling tanks for production |
||

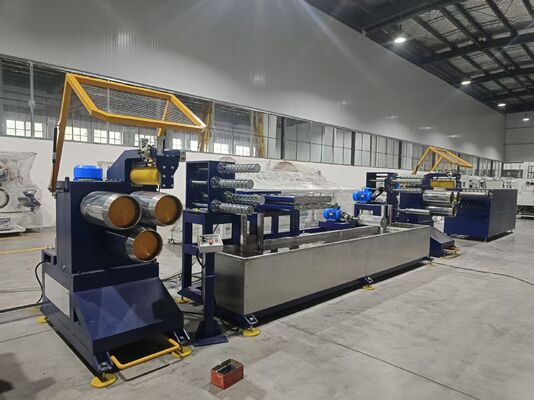

Cooling and setting is the key transformation process of PP strapping from melt to solid product. This production line features a dual-stage cooling system with a first cooling water tank and a secondary cooling water tank.
The first tank is 3.5m long, equipped with a honeycomb water inlet, adjustable water level, and multiple sets of sizing tracks. The entire tank can move forward/backward and up/down for easy alignment. The secondary tank is 5.5m long, with water temperature precisely adjustable between 10-25°C, ensuring the product fully crystallizes and sets at low temperature.
The dual-tank design achieves a staged cooling process of "quenching + low-temperature precision cooling," effectively controlling crystallinity, reducing internal stress, and improving product dimensional stability and mechanical properties.
| Item | First Cooling Tank | Secondary Cooling Tank |
|---|---|---|
| Length | 3.5 m | 5.5 m |
| Width | 0.8 m (tank body) | 1.3 m (body), 0.65 m (tank) |
| Height | 0.65 m | - |
| Material | 304 Stainless Steel | 304 Stainless Steel |
| Plate Thickness | 2.0 mm | 2.0 mm |
| Water Temp. Adjustment | Not adjustable (depends on inlet) | 10-25°C adjustable |
| Special Features | Honeycomb inlet, adjustable level, sizing tracks, movable | Water shedding motor 0.75KW, haul-off motors 2.2KW×2 |
