商品の詳細:
|
| 水分除去ステージ: | 二 | 初段パワー: | 4kw |
|---|---|---|---|
| 第 2 段階の電力: | 7.5kw | 単位の数: | 各4個 |
| 動作原理: | 高圧気流 | 結果: | 完全に乾燥 |
| 位置: | タンク後、ワインディング前 | ||
| ハイライト: | PP strapping band water removal system,Two-stage drying system for strapping,High-pressure airflow drying equipment |
||

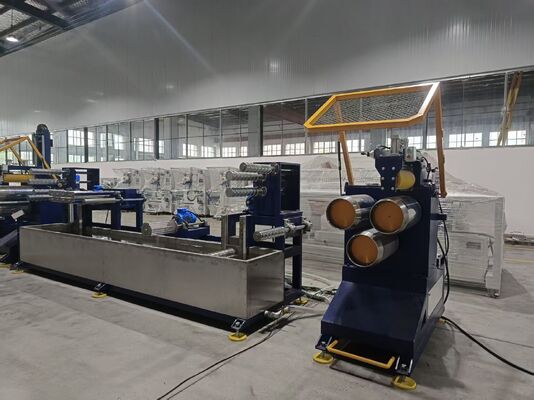

Residual moisture on the tape surface, if carried into subsequent embossing or winding processes, can cause unclear embossing, roll adhesion, or mildew. This production line is equipped with a two-stage water removal system to ensure complete drying before further processing.
The first water removal device, located after the first cooling tank, uses a high-pressure centrifugal fan (4KW) with 4 suction pipe sets to initially remove bulk water. The second water removal device, at the outlet of the secondary cooling tank, features a high-pressure centrifugal fan (7.5KW) and 4 water removal units for efficient, fine drying. The two-stage system works together to ensure the tape entering the embosser and winder is completely dry.
| Item | First Water Removal | Second Water Removal |
|---|---|---|
| Number of units | 4 suction pipe sets | 4 water removal units |
| Fan power | 4 KW | 7.5 KW |
| Fan type | High-pressure centrifugal | High-pressure centrifugal |
| Target | 6 PP strands | 6 PP strands |
| Installation position | After first cooling tank | Outlet of secondary cooling tank |
