商品の詳細:
|
| 標準的なモード: | 6本×5-13.5mm | オプションモード: | 4本×13.5～19mm |
|---|---|---|---|
| 許容範囲: | ±0.05mm | 材料は死ぬ: | 良質鋼鉄は死ぬ |
| 切り替え時間: | 1〜2時間 | カスタマイズ: | 非標準も利用可能 |
| 柔軟性: | 高い |

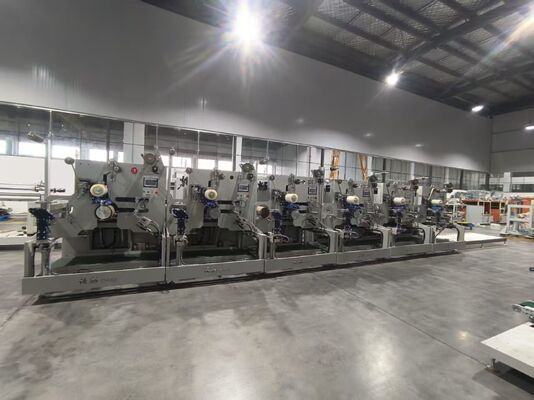

Different customers have varying width requirements for PP strapping, ranging from narrow (5mm) to wide (19mm). The standard die of this production line enables synchronized production of 6 strands in the width range of 5-13.5mm. By replacing with an optional die, it can switch to synchronized production of 4 strands in the width range of 13.5-19mm.
This flexible die configuration allows one machine to cover a wider range of product specifications, meeting different order requirements. Additionally, we can customize dies according to special customer requirements (e.g., non-standard widths or special cross-sectional shapes), further expanding the production capability of the line.
| Item | Standard Mode | Optional Mode |
|---|---|---|
| Synchronized strands | 6 strands | 4 strands |
| Single strand width range | 5 - 13.5 mm | 13.5 - 19 mm |
| Thickness range | 0.3 - 1.0 mm | 0.3 - 1.0 mm |
| Dimensional tolerance | ≤ ±0.05 mm | ≤ ±0.05 mm |
| Die change | Standard included | Optional |
| Custom dies | Non-standard widths/sections available | Available |
