商品の詳細:
|
| 標準モードのストランド: | 6 | オプションのモードストランド: | 4 |
|---|---|---|---|
| 狭い幅範囲: | 5～13.5mm | 広い幅範囲: | 13.5-19mm |
| 厚み範囲: | 0.3～1.0mm | 許容範囲: | ≤±0.05mm |
| ダイタイプ: | 流れを分岐させる | 変更方法: | クイックリリースフランジ |
| ハイライト: | PP strapping line die,PP strapping band production,PP strapping line straps |
||

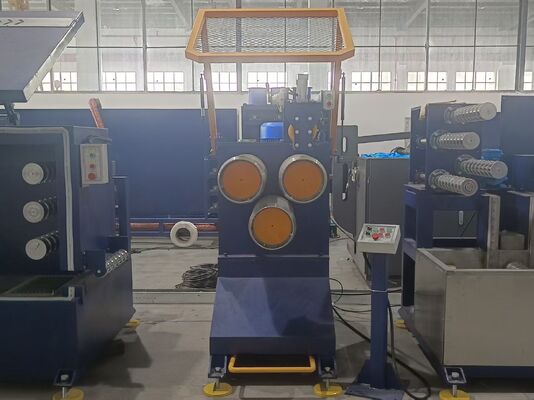

This production line features a 1-out-6 precision flow-diverging die that enables flexible switching between two operational modes. In standard configuration, it produces 6 PP strapping strands with widths ranging from 5-13.5mm. By installing an optional die, the system transitions to producing 4 strands with widths of 13.5-19mm. The die is precision-machined from high-quality die steel, maintaining product width/thickness consistency with errors ≤±0.05mm. This versatile die configuration allows a single machine to accommodate a broad spectrum of product specifications, from narrow to wide strapping, effectively meeting diverse customer requirements. Custom non-standard dies are also available.
| Parameter | Standard Mode | Optional Mode |
|---|---|---|
| Synchronized strands | 6 strands | 4 strands |
| Single strand width range | 5 - 13.5 mm | 13.5 - 19 mm |
| Thickness range | 0.3 - 1.0 mm | 0.3 - 1.0 mm |
| Dimensional tolerance | ≤ ±0.05 mm | ≤ ±0.05 mm |
| Die type | 1-out-6 flow-diverging | 1-out-4 flow-diverging (optional) |
| Metering pumps | 2 x 50cc | 2 x 50cc |
