商品の詳細:
|
| 偏差: | ≤15mm/m | オーブンの長さ: | 4.0m |
|---|---|---|---|
| オーブン加熱: | 遠赤外線 | オーブン温度コントロール: | ±2℃ |
| 絶縁: | 100mm | ドロー比率: | ドロー比率 |
| 引き取り精度: | ±1m/分 | 応用: | 全自動結束 |
| カンバー: | 非常に低い | 妨害の危険性: | なし |
| ハイライト: | Low Camber PP Strap Production Line,PP Strap Making Line with Low Camber,Low Camber Polypropylene Strap Manufacturing Line |
||

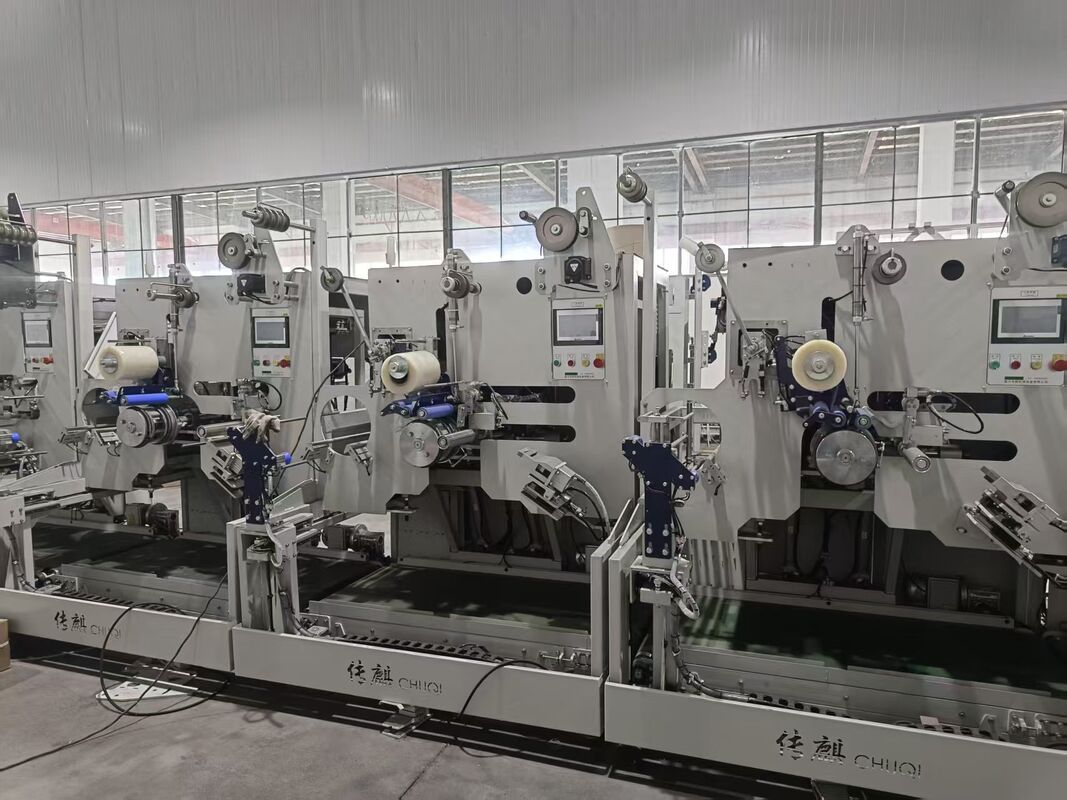

This production line manufactures PP strapping with extremely low camber, maintaining deviation within 15mm/m. Advanced multi-stage stretching, precision heat setting, and comprehensive closed-loop tension control ensure superior product quality. The system features a 4.0-meter sizing oven with far-infrared heating tubes, 100mm thick insulation, and ±2°C temperature control accuracy for complete stress elimination and thorough material setting.
| Parameter | Specification |
|---|---|
| Product Deviation | ≤ 15 mm/m |
| Sizing Oven Length | 4.0 m |
| Oven Heating Method | Far-infrared heating tubes |
| Oven Temperature Accuracy | ±2°C |
| Insulation Thickness | 100 mm |
| Draw Ratio Range | 1.5 - 12 : 1 |
| Haul-off Speed Accuracy | ±1 m/min |
| Line Speed | 0 - 200 m/min |
