商品の詳細:
|
| オーブン断熱材: | 100mm | 拡張ボックスの断熱材: | 100mm |
|---|---|---|---|
| 材料: | 高密度ロックウール | 省エネ: | 20~30% |
| 外壁温度上昇: | ≤+15℃ | 温度安定性: | 改善されました |
| 長期的なメリット: | 大幅な節電 |

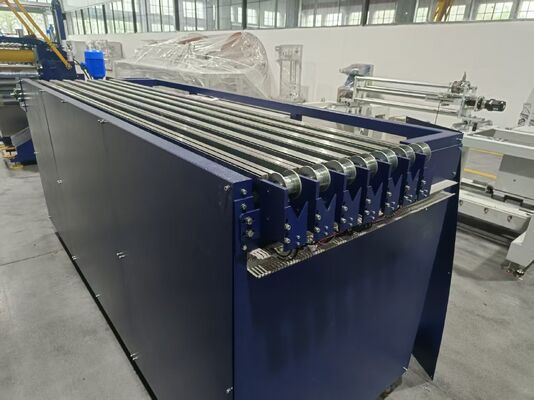

In continuous high-speed production, heating units account for a significant portion of total line power consumption. This production line features 100mm thick high-efficiency insulation on both the sizing oven and extension box—a robust design rarely seen in comparable equipment.
This advanced insulation design significantly reduces heat loss to the external environment, dramatically improving thermal performance. Actual measurements demonstrate that 100mm insulation can reduce heating energy consumption by approximately 20-30%, while also minimizing internal temperature fluctuations for more stable control. Over long-term operation, the electricity savings are substantial—representing a classic "invest once, benefit long-term" energy-saving solution.
| Item | Sizing Oven | Extension Box |
|---|---|---|
| Insulation thickness | 100 mm | 100 mm |
| Insulation material | High-density fiberglass/rock wool | High-density fiberglass/rock wool |
| Outer wall temp. rise | ≤ ambient +15°C | ≤ ambient +15°C |
| Heating power | 20 KW | 41.6 KW |
| Energy saving estimate | 20-30% | 20-30% |
| Temp. control accuracy | ±2°C | ±2°C |
