商品の詳細:
|
| ネジの材質: | 38CrMoALA | バレル材質: | 38CrMoALA |
|---|---|---|---|
| 表面処理: | 亜硝酸 | 表面硬度: | HRC58〜60 |
| 可塑化の均一性: | ≥99% | 人生 を 身に付け: | 長さ |
| 適用材質: | PPおよび改良グレード | ||
| ハイライト: | 38CrMoAlA alloy steel screw barrel,nitrided surface treatment screw barrel,HRC58-60 hardness screw barrel |
||

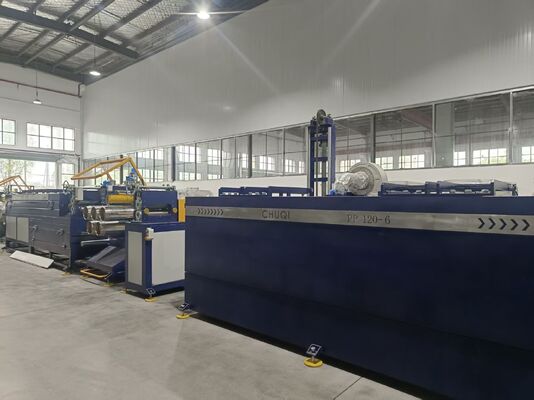

The screw and barrel are the "heart" of the extruder. Their wear resistance directly determines the equipment's service life and long-term stability. The screw and barrel of this production line are both made of high-quality 38CrMoAlA alloy steel, precision machined and then fully nitrided, achieving a surface hardness of HRC58-60.
This high-hardness, high-wear-resistance design effectively withstands long-term abrasion from PP materials (especially those containing glass fiber, fillers, or regrind), significantly extending the replacement cycle of core components. Additionally, the nitrided layer offers good corrosion resistance, suitable for processing modified PP such as flame-retardant grades.
| Item | Parameter |
|---|---|
| Screw Material | 38CrMoAlA Alloy Steel |
| Barrel Material | 38CrMoAlA Alloy Steel |
| Surface Treatment | Nitriding |
| Surface Hardness | HRC 58 - 60 |
| Plasticizing Uniformity | ≥ 99% |
| Screw Diameter | φ120 mm |
| L/D Ratio | 30 : 1 |
| Screw Speed Range | 10 - 90 rpm |
| Maximum Output | 220-240 kg/h |
